HealthCraft SuperPole System
HealthCraft SuperPole System

HealthCraft SuperPole System

Brand/Manufacturer: HEALTHCRAFT PRODUCTS INC.
Hpfy stores Save
Authorized Retailer Badge
  • Latex Free

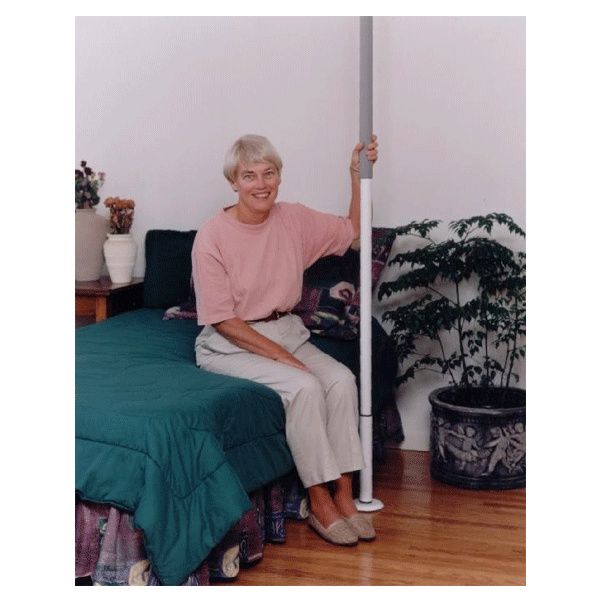

HealthCraft SuperPole System is ideal for any room, providing stability and functionality in a clean and modern design. It is easily installed between any floor and ceiling by turning a pressurized jackscrew, and the pressure created by the jackscrew is strong enough to support up to 300lbs. This SuperPole System provides modular support and designed for those requiring assistance with standing, transferring or moving in bed. No matter the room, the Superpole can be multi-purposed to meet support needs.

HealthCraft SuperPole System Highlights:

  • Non-slip
  • Latex-free
  • Easy to install
  • Anti-microbial powder coat white
  • Easy to relocate or remove
  • PVC closed foam grip material
  • Providing stability and functionality





Read More
Item # Desc Pkg Price
SP-S SuperPole Each
$357.65
$283.60

HealthCraft SuperPole Features

  • Installs in minutes via tension between floor and ceiling, easy to relocate or remove with no damage to ceiling
  • As mobility needs change, accessories can be added onto the SuperPole to offer more advanced support
  • Versatile and installs anywhere in floor and ceiling, placing transfer support directly where it is needed
  • Comfort foam hand grip provides a comfortable gripping surface
  • Non-marking base plate rubber, ribbed for better gripping
  • Grip material is in Grey with premium high quality grip
  • Stylish clean and modern design will suit any decor
  • Prevent marring of floor and stipple ceilings
  • Use it on beside a bed, bath, toilet or chair
  • Useful for those with limited hand strength
  • Non-slip, PVC closed foam grip material
  • Anti-microbial white powder coat finish
  • SuperPole supports up to 300 lbs
  • Latex-free
  • Also Available (Separately):
    - HealthCraft SuperPole FRS Assist Pole
    -     HealthCraft SuperPole FRS Floor Receptacle Only

More On SuperPole

Installation Instruction of SuperPole:

  • On a flat horizontal surface, place top plate onto pole.
  • Align holes and install clevis pin with washer on opposite side.
  • Install cotter pin into clevis pin.
  • Place base plate on floor at intended location, and tilt pole.
  • When upright, install the pole into the base plate hole.
  • Insert shaft of screwdriver thru drive hole of extension screw.
  • Hold pole and turn screwdriver clockwise to raise pole.
  • Top plate must contact ceiling squarely.
  • Continue turning extension screw approx 2-5 turns until pole is secure.
  • Turn jam nut until it is tight against bottom of pole.
  • Turn both jam nut and extension screw together to jam tight.
  • Remove screwdriver and lower cover sleeve to conceal screw.


Note:

  • This System should only be installed between floors and ceilings of solid construction or injury may result. This System should not be installed on loose floor coverings, in rooms with radiant ceiling heating, in mobile homes, or in suspended or angled ceilings.

Specification

Particulars

Dimension

Floor to Ceiling Range

93" to 99" (236cm to 251cm)

Pole Diameter

1.5" x 90" (3.8cm x 228.6cm)
Heavy duty steel

Top Plate Length

20" (51cm)

Base Plate Diameter

5" (13cm)

Weight Capacity

300lb (136kg)
Installation Hardware/Fasteners Zinc plated jackscrew (included)
Fasteners Exposed or Concealed Concealed; plastic cover sleeve
Commercial Use Yes
Residential Use Yes
Water Resistant Yes
Rust Resistant No

Warranty

Limited Lifetime Warranty
