Columbia Hi-Back Contour Wrap-Around Bath Support

More About Wrap-Around Bath Support

Precautions

• Never leave a user in the Wrap-Around Bath Support unattended in the bath.
• The Wrap-Around Bath Support provides support but does not replace adult supervision while bathing.
• When this support is used in or around water, uninterrupted supervision is necessary to reduce the risk of injury or drowning.
• Regularly check that all locking knobs, buckles and other parts are tight at all times.
• Use the Wrap-Around Bath Support on level surfaces only.

Cleaning Instructions- Bath Support

• The Bath Support may be cleaned with mild cleansers or soap.
• Harsh abrasive cleaners may dull the finish.
• The metal parts of the bath support are made of stainless steel and will not rust.

Assembling Instructions- Wrap-Around Bath Support

• Attach the legs:
  - The front horizontal legs are shipped detached from the frame.
  - To assemble, depress the metal button on the legs and insert the legs into the frame.
  - The metal button will click into the holes of the frame, locking the legs in place.
• Attach the Back Support:
  - Place the metal plate which is attached to the back support against the front side of the curved arch of the frame.
  - Bolt the metal plate to the arch by inserting the two bolts provided through the frame, from front to back.
  - Place the plastic washers on each bolt on the back side of the frame, then screw on the plastic locking knobs.

Adjusting the Wrap-Around Bath Support

• Adjust the back height by loosening the plastic locking knobs and sliding the back up or down on the metal plate to the desired height.

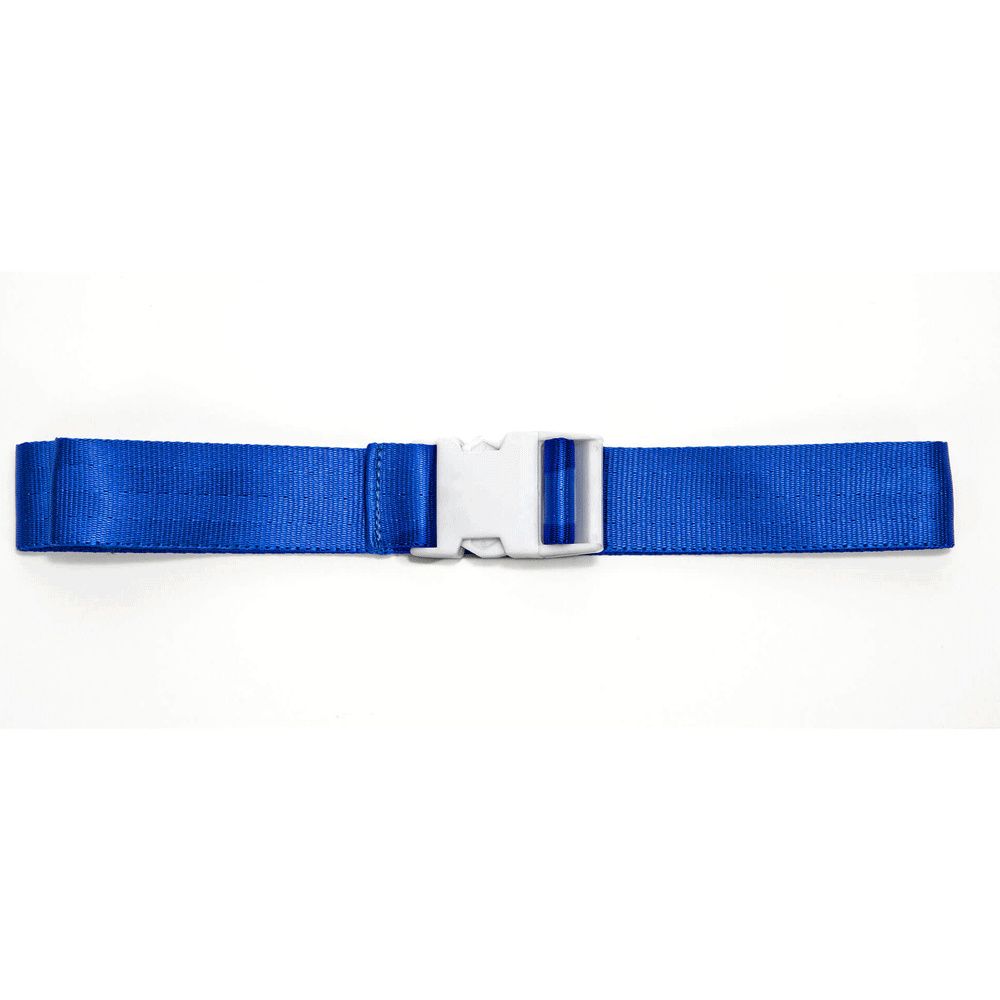

• Adjust the lap belt to provide a snug, but comfortable fit.
• If using a Hi-Back model, adjust the shoulder straps.
